Cupola360 RX2000 8K 360° AI Vision Camera

Vision & Sensor Payloads

Cupola360 RX2000 8K 360° AI Vision Camera

8K 360° edge AI camera for standalone monitoring or panoramic situational awareness on the LMV UGV.

Key attributes

Taiwan (ROC) 🇹🇼
NDAA-Compliant
Quote Required
Add to Cart

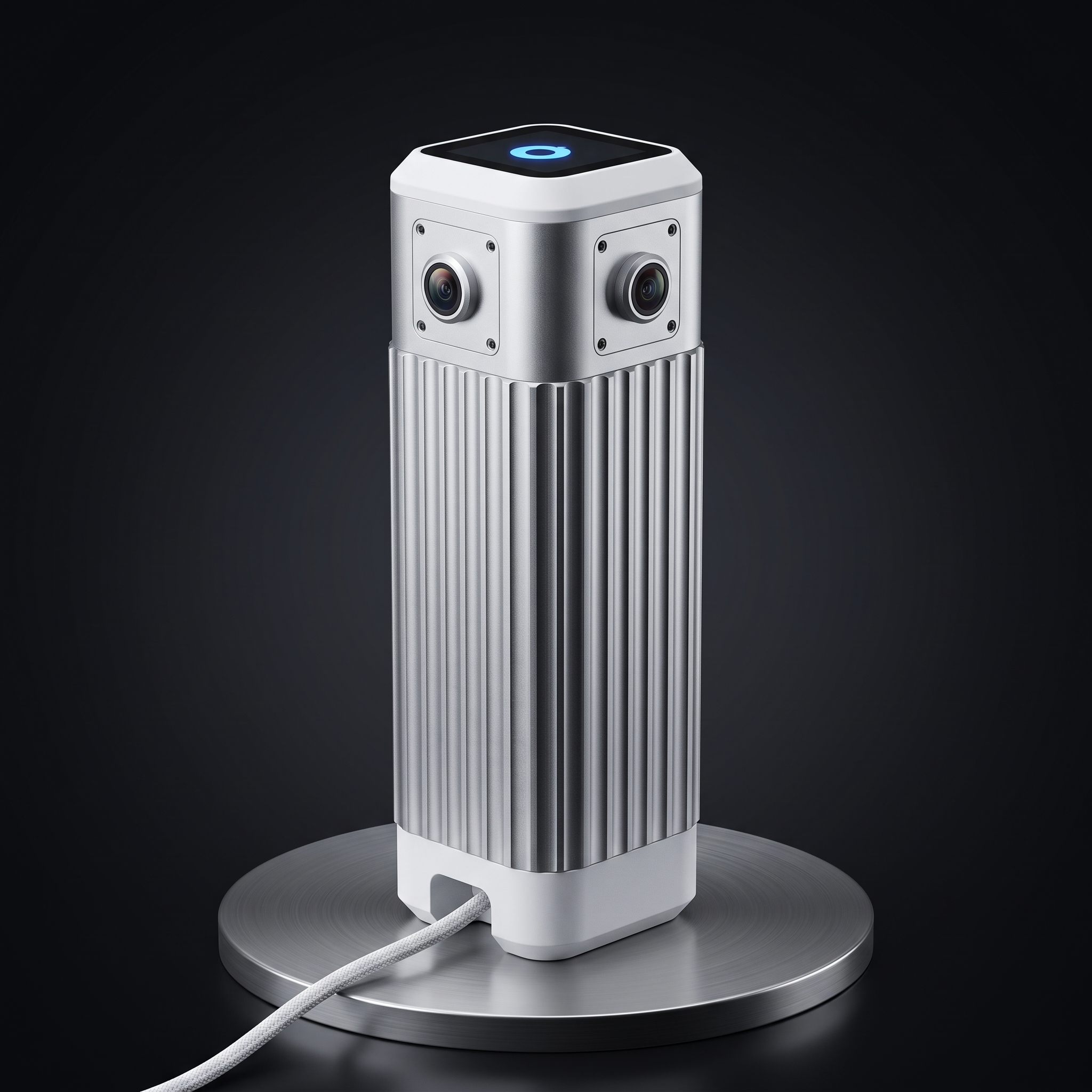

The RX2000 is an 8K 360° × 180° network camera for standalone monitoring, patrol, and edge AI applications. It supports night vision, onboard video analytics, and multiple network protocols for system integration. It can also be integrated with the LMV UGV as a modular panoramic vision payload, providing operators with broader situational awareness.

Field of View 360°× 180°

Video Resolution Up to 8K at 15 fps or 5.7K at 30 fps

Sensors Four 8 MP CMOS sensors
Streaming H.264 / H.265 via RTP/RTSP
Interface Gigabit Ethernet, ONVIF, OSC API
Power PoE 802.3at, 11.5 W
Protection IP66 aluminum housing
Durability MIL-STD-810H environmental tested
Dimensions 68 × 68 × 204 mm / 0.2 x 0.2 x 0.67 ft
Weight Approx. 1330 g / 2.9 lb
Operating Temperature -10°C to +50°C

Compliance NDAA compliant
